8CH CWDM Mux Demux

Brand Name : GEZHI or OEM

Model Number : 4Slot*8CH-MD-1U

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Product Name : 4Slot*8CH-MD-1U

Wavelength : 1470~1610+Upgrade

Channel Number : 1x8 Mux&Demux

Line Type : Mux+Demux in one cassette

Connector : LC/PC Adaptor

Application : Optical video networks

Contact Now


4 unit 8CH Optical Passive CWDM Mux/Demux Plug-in Module in 1U Rack-Mount

GEZHI 4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module is built a 8CH Mux + 8CH Demux ine one LGX cassette, then 4 cards LGX cassette built in a 19" 1U Rack-mount. The wavelenght of 4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module is 1470 to 1610nm with upgrade port for Future development and Fibre Extender. The 4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module offers an high channel isolation WDM solution for Metro access applications and data centers.

Features
High channel isolation
High Quality & Low Cost

Wide pass band

Combined mux and demux unit, working on two network fibers

Epoxy free optical path
Fully compatible with all ITU-T CWDM optics


Applications

Line monitoring

Data Centor

Access Network

Fiber optical amplifier

Metro Access application

Optical video networks

Telecommunication



Ordering Information

CWDM - XXX - XX - XX - XX - XX - XX
    Number of Channels   Module type   Cable type   Fiber length   Input connector

Output

connector
M=Mux
D=Demux
MD=Mux+Demux		   01=1Channel
02=2 Channel
03=3 Channel
04=4 Channel
......
16=16Channel
17=17Channel
18=18Channel		   0=100x80x10 mm
1=142x102x14.5 mm
2=LGX Box
3=19″1U Rack
4=2card Lgx in 1U Rack-mount
5=4card in 1U Rack-mount
X=Others		   00=none
09=900um
Loose tube
20=2.0mm
30=3.0mm		   05=0.5m
10=1.0m
15=1.5m
30=3.0m
40=4.0m
50=5.0m
......		   0=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
X=Customized

0=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
X=Customized





Specification

Parameter 8CH Mux/Demux CWDM
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±7.5
Operating Wavelength (nm) 1470~1610+Upgrade
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.5dB
Isolation(dB) Adjacent Channel 30
  Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40～85
Connector LC/UPC
BOX Package (mm) 4slot 19" 1U Rackmount

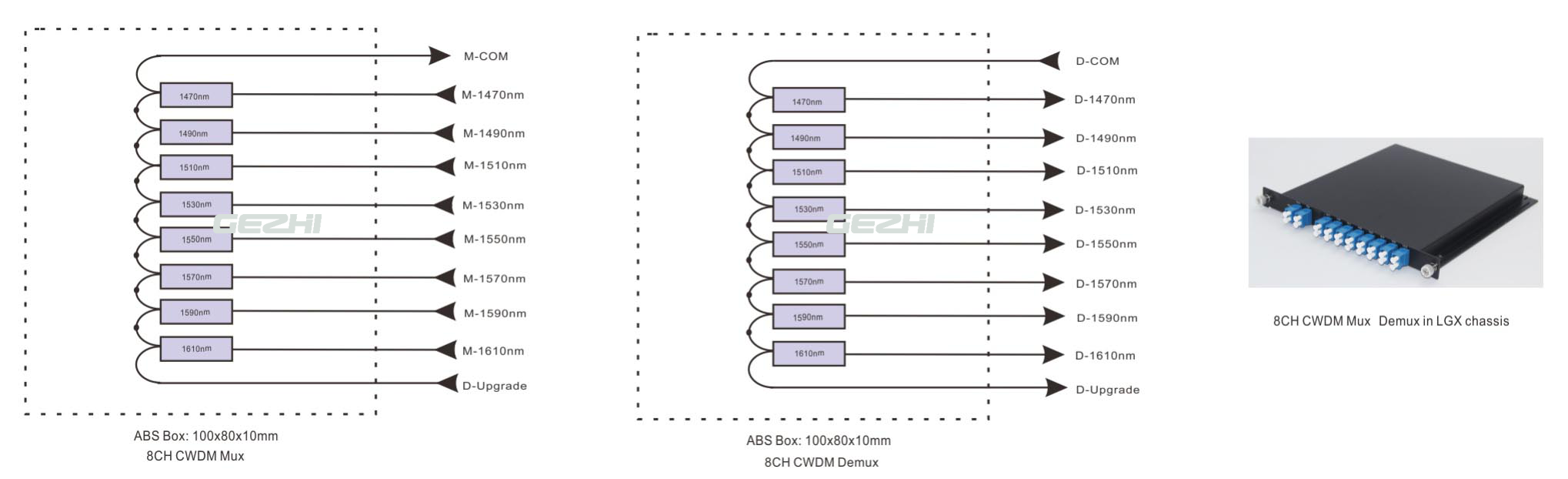

4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module Filter cascading
1470~1610nm+UPG, 4-slot 1U 19" Rackmount, LC/UPC

8CH CWDM Mux Demux

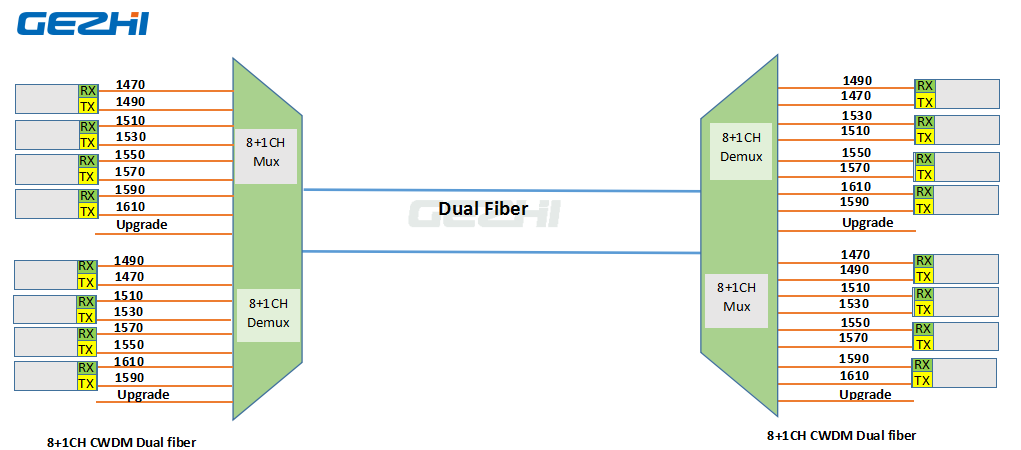

8CH Mux/Demux CWDM Passive Multiplexer Two Fiber



8CH CWDM Mux Demux

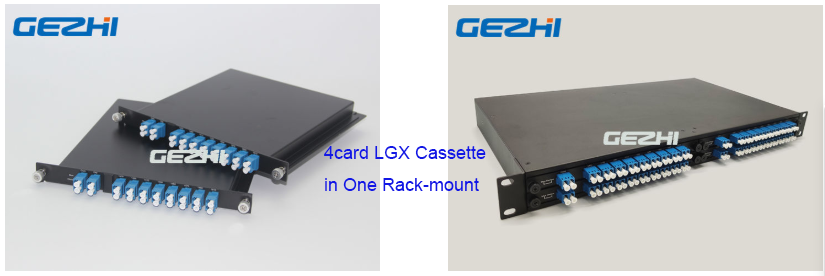

4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module built in one LGX Cassette

8CH CWDM Mux Demux

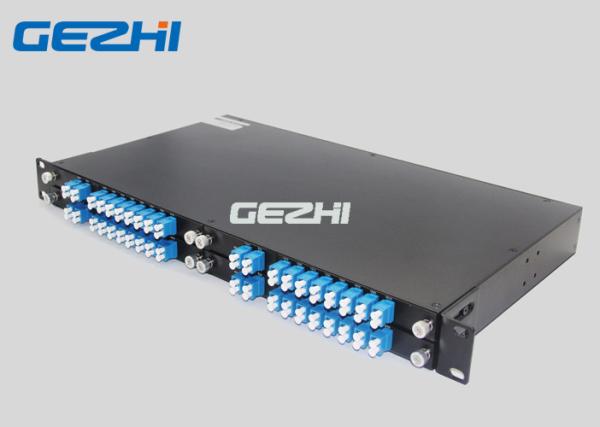

4 unit 8CH Mux/Demux CWDM Passive Multiplexer Plug-in Module built in one 19 inch 1U Rackmount

8CH CWDM Mux Demux
