100Ghz Filter WDM

Brand Name : GEZHI or OEM

Model Number : 1x2-DWDM-100G

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Product Name : DWDM Device

Wavelength : @ITU grid

Port : 1x2 port

PackageLGX Cassette : Stainless Steel Tube

Connector : LC/UPC

Application : WDM system

Contact Now

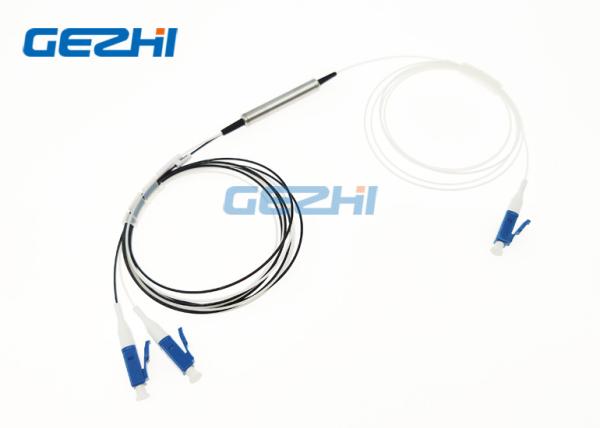

100Ghz 1x2 Passive Optical DWDM filter add/drops device



GEZHI 100Ghz 1x2 Passive Optical DWDM filter utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. The 100Ghz 1x2 Passive Optical DWDM filter add/drops device provides ITU channel center wavelength, high channel isolation, low insertion loss, wide pass band, low temperature sensitivity and epoxy free optical path. It can be used for wavelength add/drop in telecommunication network system.





Features

Applications
  • High Isolation
  • HIgh Reliability
  • Low Insertion loss
  • Wide Bandwidth
  • High channel isolation
  • Fiber optical amplifier
  • Wavelength routing
  • DWDM Networking
  • Channel Add/Drop
  • CATV fiber optic system



Specification

Parameter Specification
Channel Wavelength (nm) ITU 100 GHz Grid
Center wavelength Accuracy (nm) ±0.05
Channel Passband (@-0.5dB bandwidth) (nm) ±0.1
Channel Spacing (Ghz) 100
Pass Channel Insertion Loss (dB) ≤0.7
Reflection Channel Insertion Loss (dB) ≤0.5
Isolation (dB) Pass Channel >30
Reflect Channel >13
Polarization Dependent Loss (dB) <0.20
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 500
Operating Temperature (℃) -10~+75
Storage Temperature (℃) -40~+85
Package dimension (mm) Φ5.5 x L34


100Ghz 1x2 Passive Optical DWDM filter add/drops device

Ordering Information:

DWDM X XX X X X XX







 Channel Spacing Wavelength  Package Fiber Type Fiber Length In/Out Connector

100=100Ghz

200=200Ghz

1=C1

2=C2

......

60=C60

61=C61





G=Glass Tube

S=Stainless Steel Tube

1=Bare fiber

2=900um loose tube

1=1m

2=2m

S=Specify



0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=LC/APC

6=LC/PC

S=Specify


Mechanical

100Ghz Filter WDM

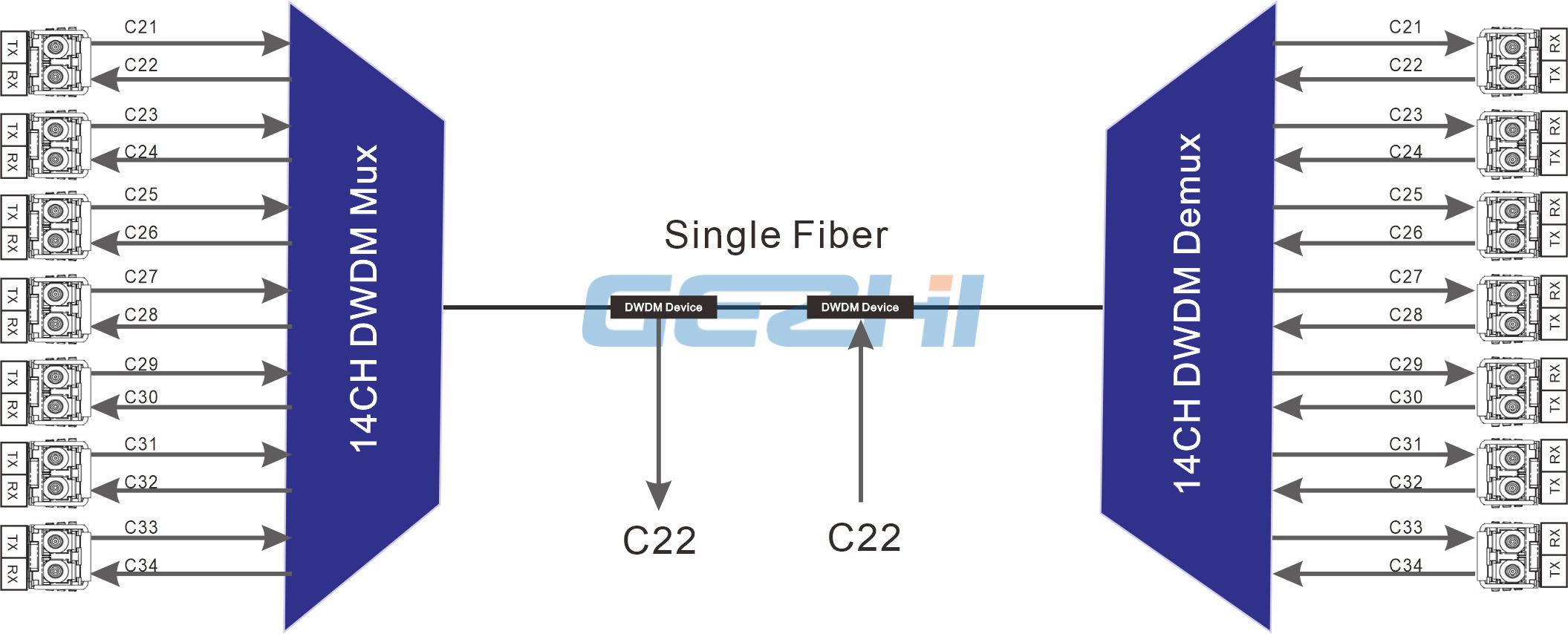

1x2 DWDM Optical Add/drops Device Solutions

100Ghz Filter WDM
