LC/UPC Connector 4x4 850nm Mechanical Fiber Optic Switch

  • 1
  • 2

Brand Name : GEZHI or OEM

Model Number : GZ-FSW-D2x2-I

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 60000pcs per month

Delivery Time : 2-7 work days

Packaging Details : 2pcs in a foam with plastic Box

Product Name : 4x4 Fiberoptic Switch

Feature : Low Insertion Loss

Wavelength : 850nm

Power Supply : 3V or 5V

Control Type : Latching or Non-Latching

Connector : LC/UPC or customized

Contact Now



4x4 Industrial type Mechanical Fiberoptic Switch



The 4x4 Industrial type Mechanical Fiberoptic switch of GEZHI Photonics Co.,Ltd utilizes fiber-to-fiber technology to achieve ultra low losses and crosstalk. It is an components for 10 /1Gbps fiber Gigabit Ethernet networks. It is suitable for all bi-directional protection switching applications . The 4x4 industrial fiberoptic switch provides excellent performance on your network and posses the advantages of compact and competitive cost.





Features

Low insertion loss
Low crosstalk
Low polarization dependent loss

Excellent repeatability
Wide passband

Applications

Redundancy switching

Optical Add-Drop multiplexer
Optical monitoring systems

Reconfiguration and restoration of fiber networks



Specification

Model Unit GZ-FSW-D2x2
Operatingwavelength nm 850±40/1300±40 1260～1620
wavelength nm 850&1300 1310&1550
Insertion loss dB Typ:1.2 Max:1.7
Return loss dB MM≥30 SM≥50
Cross talk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Voltage v 3.0 or 5.0±0.5
Operating life Time ≥107
Switch time ms ≤8
Power handling mW ≤500
Operating temperature ℃ -40～+85
Storage temperature ℃ -40～+85
Size mm 27.0×12×8.2 28.5×12.6×8.7
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors.

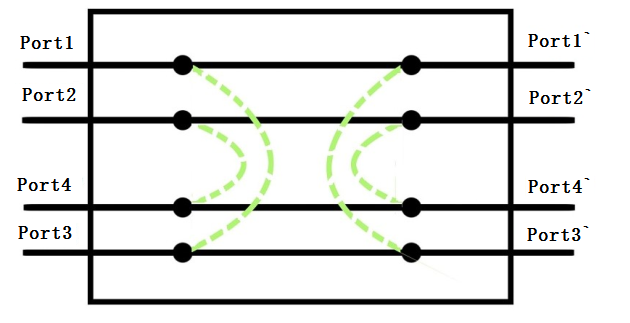

Optical Route

LC/UPC Connector 4x4 850nm Mechanical Fiber Optic Switch



Pins



Type State Optical Route Electric Drive Status Sensor
D2×2     Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9
Latching A P1-P2,P3-P4 -- -- GND V+ Close Open Open Close
P1’-P2’,P3’-P4’
B P1-P4,P3-P2 V+ GND -- -- Open Close Close Open
P1’-P4’,P3’-P2’
Non-latching A P1-P2,P3-P4 -- -- -- -- Close Open Open Close
P1’-P2’,P3’-P4’
B P1-P4,P3-P2



























Order Information

GZ-D2x2-x-xx-x-x-x-xx-x-xx

Mode Wavelength Voltage Type Control Model Fiber Type Fiber Diameter Fiber Length Connector
S=SM
M=MM		 85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others		 3=3V
5=5V		 L=Latching
N=Non- Latching		 5=50/125
6=62.5/125
9=9/125
X=Others		 25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others		 1=1m
2=1.5m
X=Others

0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC

X=Others
