1310 - 2050nm Polarization Maintaining In Line Isolator For Fiber Sensor

Brand Name : GEZHI or OEM

Model Number : PM In-line Isolator

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : gotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Packaging Details : Paper box

product name : PM In-line Isolator

Wavelength : 1310-2050nm

Fiber Type : PM Panda Fiber

Stage : Single/Dual

Core Type : Single/Dual

Warranty : 3 years

Contact Now

High Stability & Reliability 1310-2050nm Polarization Maintaining In-line Isolator for Fiber Sensor

Product Description

The isolator is designed to transmit positive light, while blocking the reflected light from the terminal. The isoaltor is characterized with low insertion loss, high isolation, high return loss and excellent environmental stability and reliability. It's the critical device of fiber amplifiers, fiber lasers, high speed communication systems and instrumentation applications.

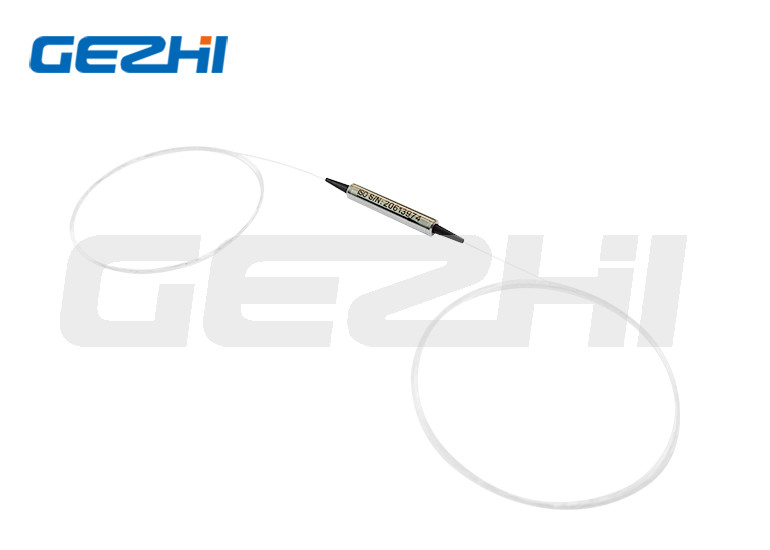

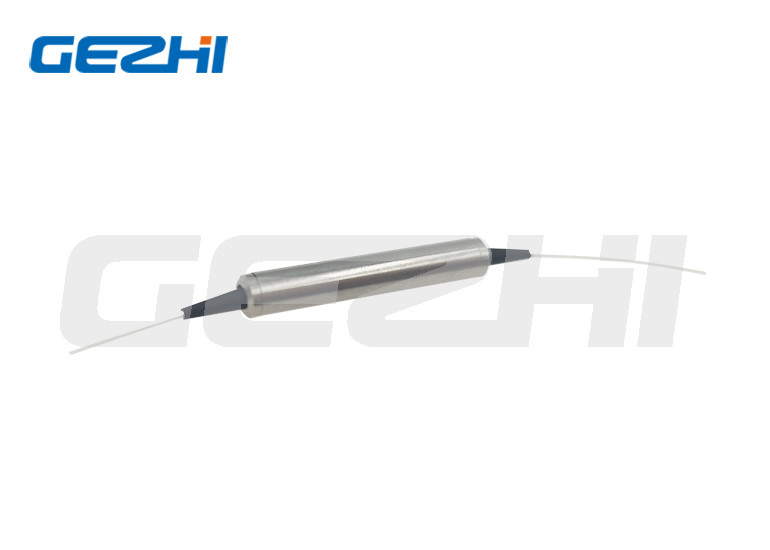

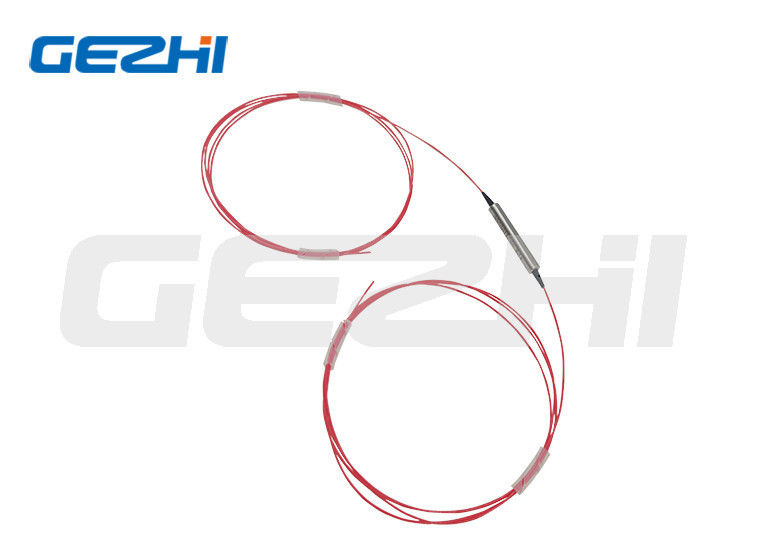

1310 - 2050nm Polarization Maintaining In Line Isolator For Fiber Sensor  1310 - 2050nm Polarization Maintaining In Line Isolator For Fiber Sensor1310 - 2050nm Polarization Maintaining In Line Isolator For Fiber Sensor
Features
Low Insertion Loss
High Return Loss
High Extinction Ratio
High Isolation
High Stability & Reliability
Applications
Communication Systems
Test Instrument
Fiber Sensor
Research
Specification
Parameter Unit Value
Stage - Single Dual Single Dual
Center Wavelength nm 2050, 2000, 1950 1550, 1480, 1310
Operating Wavelength Range nm ±20
Typ. Peak Isolation at 23℃ dB 20 35 42 58
Min. Isolation at 23℃ dB 18 30

28



45


Typ. Insertion Loss at 23℃ dB 0.8 1.0

0.4



0.5


Max. Insertion Loss at 23℃ dB 1.2 1.3

0.55



0.65


Min. Extinction Ratio at 23℃ Both axis working dB

18

20



 20
  Fast axis Blocked dB

20

25



 23
Min. Return Loss at 23℃ (input/output) dB 50/50
Max. Optical Power (CW) mW 500
Fiber Type - PM Panda Fiber
Max. Tensile Load N 5
Operating Temperature ℃ 0~+70
Storage Temperature ℃ -40~+85

With connectors, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.

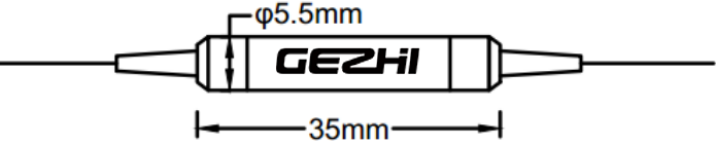

Package Dimensions
1310 - 2050nm Polarization Maintaining In Line Isolator For Fiber Sensor

Ordering Information

PMIS-1111-23-444-56-7-88

1111 - Wavelength:

1064=1064nm, 1030=1030nm, 980=980nm,.....

 2000=2000nm, 1550=1550nm, 1480=1480nm, 1310=1310nm, SSSS=Specified

2 - Core Type:

S=Single-Core

 S=Single-core, D=Dual-core

3 - Working Axis:

F=Fast axis blocked, B=Both axis working, N=Non-PM

 B=Both axis working, F=Fast axis blocked

444 - Fiber Type:

003=PM980, 004=Hi1060, 014=PM1060L, SSS=Specified

 001=PM1550, 002=PM1310, 045=PM1950, SSS=Specified

5 - Package Dimensions:

0=58x28x26mm

 0=5.5x35mm, S=Specified

6 - Pigtail Type:

0=bare fiber, 1=900μm loose tube, S=Specified

 0=bare fiber, 1=900μm loose tube, S=Specified

7 - Fiber Length:

0.8=0.8m, 1.0=1.0m. S=Specified

 0.8=0.8m, 1.0=1.0m, S=Specified

88 - Connector Type:

N=None

 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
