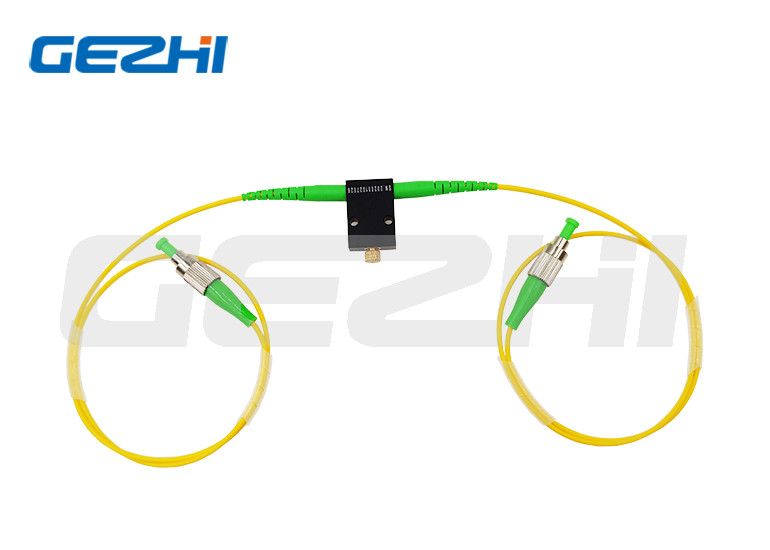

High Precision 532-2050nm PM Manual Variable Optical Attenuator For Optics Laboratory

Name: High Precision 5322050nm PM Manual Variable Optical Attenuator For Optics Laboratory
Brand: GEZHI or OEM
Price: 1 USD

Buy cheap High Precision 532-2050nm PM Manual Variable Optical Attenuator For Optics Laboratory product

Brand Name : GEZHI or OEM

Model Number : PM Manual VOA

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Packaging Details : Paper box

Wavelength : 532-2050nm

Fiber Type : PM Panda Fiber

Application : Optics Laboratory

Connectors : FC/APC, customized

Contact Now

High Precision 532-2050nm PM Manual Variable Optical Attenuator for Optics Laboratory

Product Description

532-2050nm Polarization Maintaining (PM) Manual Variable Optical Attenuator is a fiber component which can
control the attenuation of the optical power by adjusting the screw, the attenuation value can be up to 60dB, it's
widely used in optical power testing system, fiber line protection and optical power monitoring field.

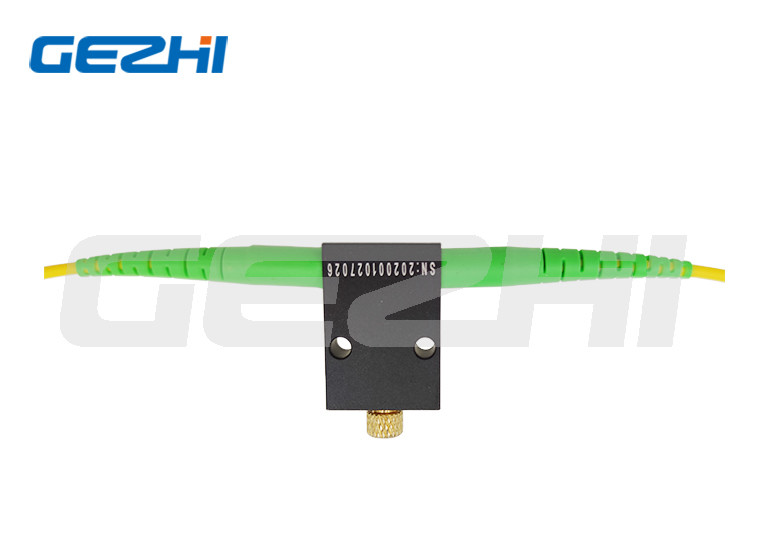

High Precision 532-2050nm PM Manual Variable Optical Attenuator For Optics Laboratory

Features

High Precision
Wide Attenuation Range
Low Insertion Loss

Applications

Optical Power Monitoring
Fiber Line Protection
Testing System
Lab And Research

Specification

Parameter	Unit	Value
Center Wavelength	nm	2050, 2000	1550, 1310	1064, 980	850, 780	633, 532
Operating Wavelength Range	nm	±40	±40	±20	±20	±20
Attenuation Range	dB	0.8~60	0.6~60	0.6~60	0.6~60	0.8~60
Max. Insertion Loss	dB	0.8	0.6	0.6	0.6	0.8
Min. Extinction Ratio at 23℃	dB	18	20	20	20	18
Min. Return Loss	dB	50
Adjustment Precision	dB	0.02
Max. Power Handling	mW	500
Fiber Type	-	PM Panda Fiber
Operating Temperature	℃	0 ~ +70
Storage Temperature	℃	-40~+85
Package Dimensions	mm	26x18x8

For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
The default connector key is aligned to slow axis.

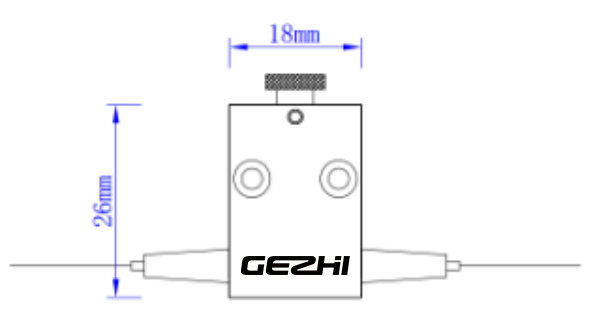

Package Dimensions

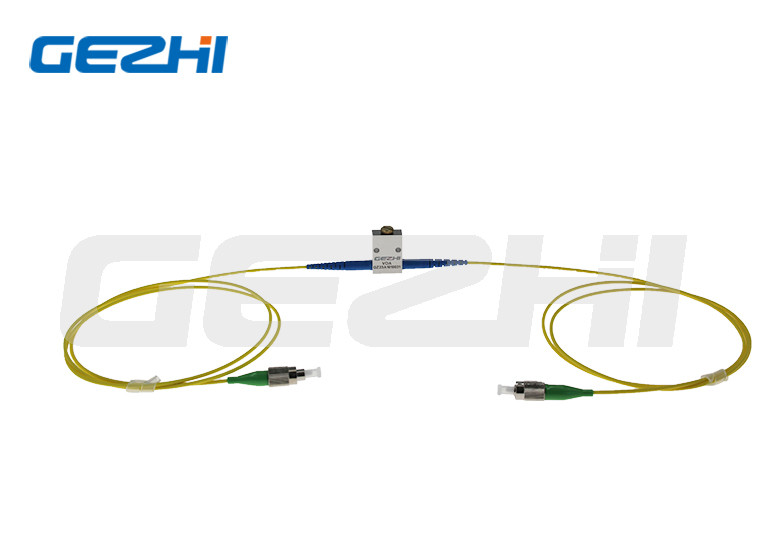

High Precision 532-2050nm PM Manual Variable Optical Attenuator For Optics Laboratory

Ordering Information

PMMVOA-1111-2-333-45-6-77
1111 - Wavelength: -Center Wavelength:	2000=2000nm, 1550=1550nm, 1310=1310nm, 1064=1064nm, SSSS=Specified
2 - Working Axis: -Axis Alignment	B=Both axis working, F=Fast axis blocked
333 - Fiber Type: -Fiber Type:	001=PM1550, 002=PM1310, 003=PM980, 045=PM1950, SSS=Specified
4 - Package Dimension: -Package Dimension:	0=26x18x8mm, S=Specified
5 - Pigtail Type: -Pigtail Type:	0=bare fiber, 1=900μm loose tube, S=Specified
6 - Fiber Length: -Fiber Length:	0.8=0.8m, 1.0=1m, S=Specified
77 - Connector Type: -Connector for In & Out:	0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified

Product Tags:

PM Manual Variable Optical Attenuator

High Precision Manual Variable Optical Attenuator
