Multi Channel FWDM Filter WDM Steel Tube Communication Equipment
Product Description
FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.
We provide filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get's "mixed".
Features
Low Insertion Loss
High channel Isolation
Wide pass band
High reliability and stability
Epoxy free on optical path
Application
Line monitoring
Telecom munication
Cellular Application
Fiber optical Amplifier
Access Network
Metro WDM systems
Long haul WDM systems
Enterprise networks
Specification
| Item | Unit | Parameters |
| Channel spacing | GHz | 200 |
| Wavelength range | | C- or L-band ITU channels 186.6 to 196.1 THz |
| Passband | GHz | ≥+/- 33 |
| Transmission passband ripple | dB | ≤0.3 |
| Transmission insertion loss | dB | ≤1.0 |
| Reflection passband ripple | dB | ≤0.2 |
| Reflection insertion loss | dB | ≤0.4 |
| Transmission isolation (adj channel) | dB | ≥30 |
| Transmission isolation (non-adj channel) | dB | ≥50 |
| Reflection isolation | dB | ≥13 |
| Polarization dependent loss | dB | ≤0.2 |
| Polarization mode dispersion | ps | ≤0.2 |
| Directivity | dB | ≥50 |
| Return loss | dB | ≥45 |
| Optical power handling | mW | ≥500 |
| Tensile Load | N | ≥5 |
| Operating temperature range | | -5 to 70 |
| Storage temperature range | | -40 to +85 0C |
| Fiber type | | SMF-28e |
| Package dimension | mm | 5.5 x 34mm |
Note: All the specifications are based on the devices without connectors, and guaranteed over
wavelength, polarization and temperature.

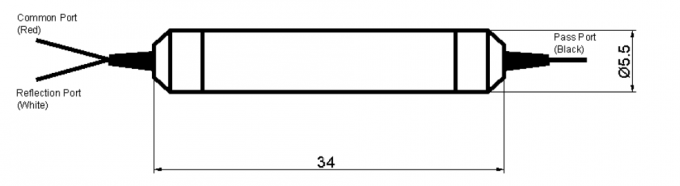

Dimensions drawing(mm)

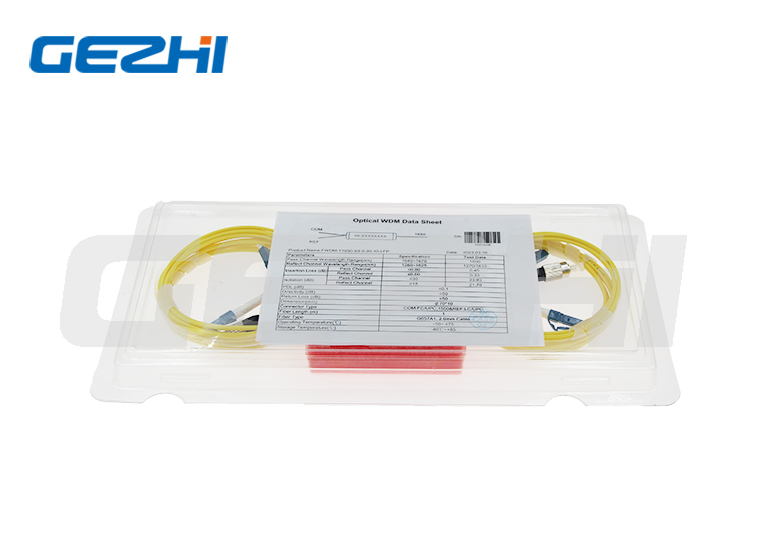

Product Packing
Product Tags:
|
|

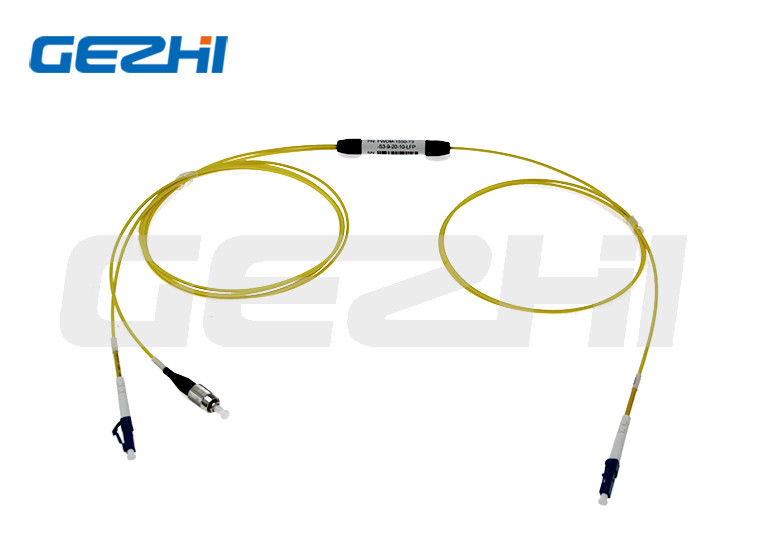

Multi Channel FWDM Filter WDM Steel Tube Communication Equipment Images
|
