Best Price MPO Female to LC UPC Duplex OS2 Single Mode Breakout Cable

Name: Best Price MPO Female to LC UPC Duplex OS2 Single Mode Breakout Cable
Brand: GEZHI or OEM
Price: 1 USD

Buy cheap Best Price MPO Female to LC UPC Duplex OS2 Single Mode Breakout Cable product

Brand Name : GEZHI or OEM

Model Number : Breakout Fiber Cable

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Warranty Time : 3 years

Connector Type : LC,SC,FC, ST, MTRJ,MTP,MPO etc

Surface Polishing : PC,APC,UPC

Length : Customised

Cable Diameter : 0.9mm/ 2.0mm/ 3.0mm

Cable Type : Simplex,Duplex

Contact Now

Product Overview

Best Price MPO Female to LC UPC Duplex OS2 Single Mode Breakout Cable

MPO OS2 Breakout Cables

GEZHI Photonics manufactures data center grade fiber optic MPO patch cords. The MPO connector uses a spring loaded sliding mechanism allowing the fiber patch cord to latch onto adapters providing a secure and reliable connection for network cabling in enterprise data centers, backbone, colocation facilities, server farms, cloud storage networks, and telecommunication rooms. Each assembly is 100% factory tested to meet IEC 61753-1 standard.

Applications

High-density Data Center
Storage area networking
Optical System Access network
40GbE & 100GbE SR optics direct connection

Test Environment

Best Price MPO Female to LC UPC Duplex OS2 Single Mode Breakout Cable

NO-dust workshop High Temp. Ageing & High-Low 100% Testing Before Optical Spectrum Analysis

Temperature cycling Shipment

ordering information

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO	SM	12F	≤0.70	≥60	≤0.35	≥60
MPO	SM	24F	≤0.75	≥60	≤0.35	≥60
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
LC/SC/FC/ST	SM	UPC	≤0.20	≥50	≤0.10	≥50

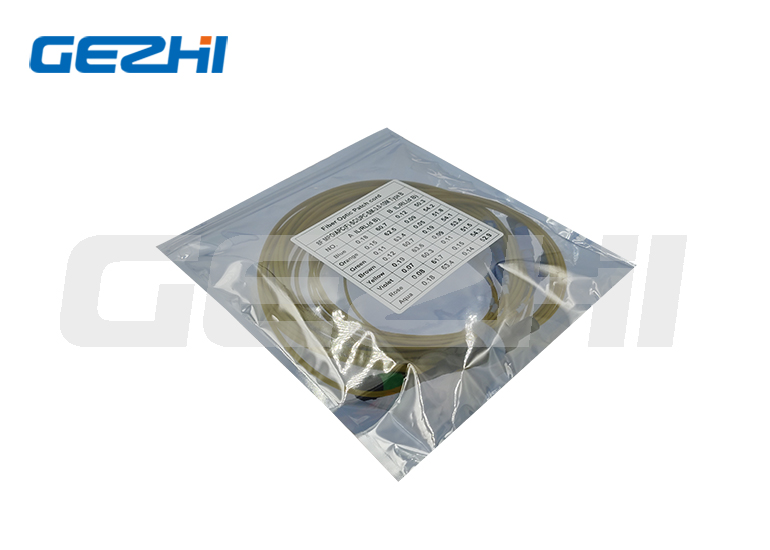

Product packaging

Best Price MPO Female to LC UPC Duplex OS2 Single Mode Breakout Cable

Finished Item

Inner Package

Carton

Best Price MPO Female to LC UPC Duplex OS2 Single Mode Breakout Cable Images
