LC / UPC Single Mode Fiber Attenuator 5dB Fixed Male Female

Name: LC UPC Single Mode Fiber Attenuator 5dB Fixed Male Female
Brand: GEZHI or OEM
Price: 1 USD

Buy cheap LC / UPC Single Mode Fiber Attenuator 5dB Fixed Male Female product

Brand Name : GEZHI or OEM

Model Number : 5dB LC/UPC Male to Female Singlemode Fiber Attenuator, Fixed Type

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Packaging Details : Paper box

Fiber Connector : LC/UPC

Ferrule Type : Zirconia Ceramic

Connector Gender : Fixed Male to Female

Transfer Mode : Singlemode

Attenuation : 5dB

Operating Wavelength(nm) : 1260~1620(SM)

Attenuation Accuracy : ±0.5dB

Return Loss : 50dB

Polarization Dependent Loss : ≤0.2dB

Max Optical Input Power : 200mW

Durability : 500 times

Humidity : 95%RH

Operating Temperature Range : -40 to 75°C (-40 to 167°F)

Storage Temperature Range : -40 to 85°C (-40 to 185°F)

Contact Now

LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator, Male-Female

Product Description

5dB LC/UPC Male to Female Singlemode Fiber Attenuator, Fixed Type

As optical passive devices, Gezhi Photonics attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.

Features

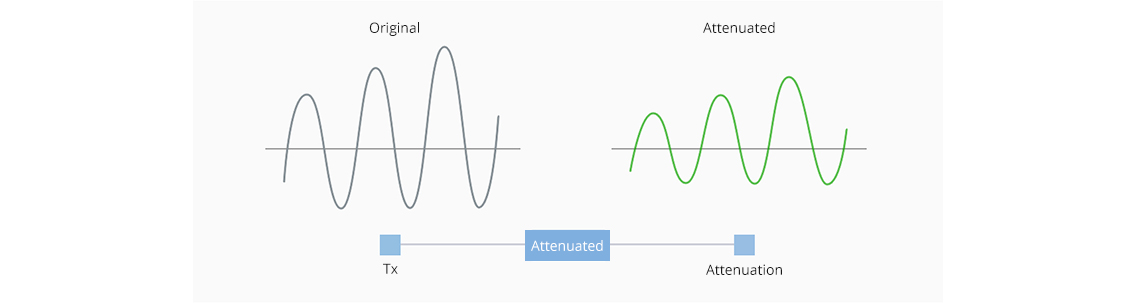

1.Signal Attenuation Provides Optical Transmission Security
Fiber optic attenuators can reduce the power level of an optical signal. They are often combined with an active system component to maintain a desired signal strength in fiber network.

LC / UPC Single Mode Fiber Attenuator 5dB Fixed Male Female

2.Guarantee Long-range Transmission with Accurate Attenuation
The attenuators are built with metal-ion doped optical fiber which can provide stable 5dB attenuation levels as to prevent optical overload at the receiver.

LC / UPC Single Mode Fiber Attenuator 5dB Fixed Male Female

3.A Variety of Applications in Fiber Optic Communication Systems
Fiber optic attenuators are usually used to test the power level margins in a fiber optic communication system, and properly match transmitter and receiver optical signal levels.

LC / UPC Single Mode Fiber Attenuator 5dB Fixed Male Female

Product Specifications

Fiber Connector	SC/APC	FC/UPC	LC/UPC
Transfer Mode	Singlemode	Singlemode	Singlemode
Attenuation	3dB	2dB	5dB
Operating Wavelength(nm)	1260~1620(SM)	1260~1620(SM)	1260~1620(SM)
Return Loss	≥60dB	≥45dB	≥50dB
Durability	500 times	-----	500 times

Product Tags:

LC / UPC single mode fiber attenuator

5dB single mode fiber attenuator

LC / UPC Single Mode Fiber Attenuator 5dB Fixed Male Female Images
