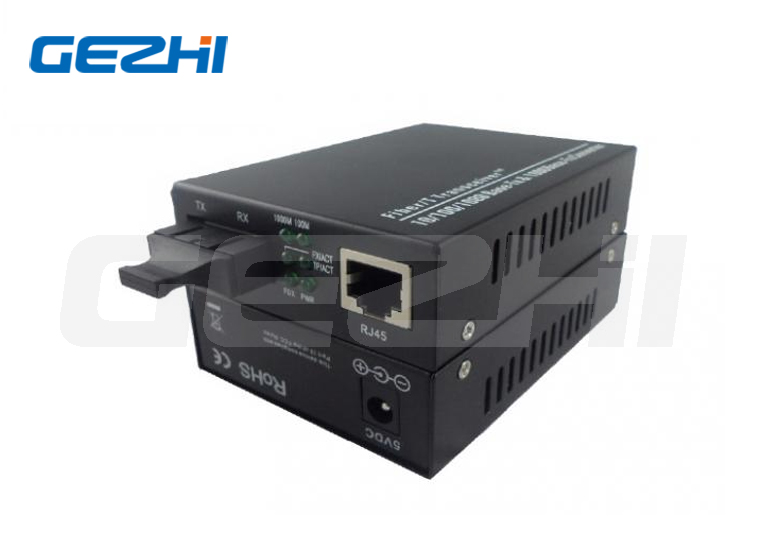

1310nm Single Mode Media Converter 10 100 1000base Tx To 1000base Fx Sm Duplex Sc

Name: 1310nm Single Mode Media Converter 10 100 1000base Tx To 1000base Fx Sm Duplex Sc
Brand: GEZHI or OEM
Price: 1 USD

Buy cheap 1310nm Single Mode Media Converter 10 100 1000base Tx To 1000base Fx Sm Duplex Sc product

Brand Name : GEZHI or OEM

Model Number : GZ-MC-10/100/1000BASE-DF

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Packaging Details : Paper box

Product Name : 10 / 100 /1000BASE Media Converter

Wavelength : 1310nm

Data Rate : 10 / 100 /1000BASE Auto - Negotiated

Connector : SC Connector

Transmission Ditance : 20KM

Fiber Type : Duplex Fiber

Contact Now

10 100 1000Base TX To 1000Base FX Media Converter , SM Duplex SC Media Converter

DESCRIPTION

10M/100M/1000M Auto-Negotiation TX to FX Fiber Opitc Media Converter with SC Connector for Singlemode Duplex fiber, 1310 nm, 20km range, with external Power Supply, Standalone.

FEATURES

Half or full duplex auto-negotiation.

10/100/1000 Mbps auto-negotiation for copper port.

Auto MDI/MDI-X on copper port.

Plug-and-play installation.

Extend network distance up to 100 km.

SC/FC/ST fiber port optional

External power supply.

6 Easy-to-view LED Indicators

Build in 14slot media converter chassis.

APPLICATION

Local Area Networks (LAN).

Enterprise Networks.

Campus Networks.

Fiber to the Building (FTTB).

Fiber to the Curb (FTTC).

Point-to-point fiber networks.

MORE SPECIFICATION

Distance	2km	20km
Connector	SC/ST	SC
Fiber Type	Multi-mode	Single-mode
Wavelength	850/1310nm	1310nm
Max TX PWR(dBm)	≥-10	≥-10
Sensitivity(dBm)	≤-24	≤-25
Link Budget(dBm)	≥11	≥25

1310nm Single Mode Media Converter 10 100 1000base Tx To 1000base Fx Sm Duplex Sc

SHIPMENT & DELIVERY

1.International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2.Payment: T / T, Western Union, Paypal and so on.
3.Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.

GUARANTEE

1. Brand new.
2.OEM/ODM is available.
3.100% through quality test and aging test.
4.3 years warranty(From the date of shipment)
