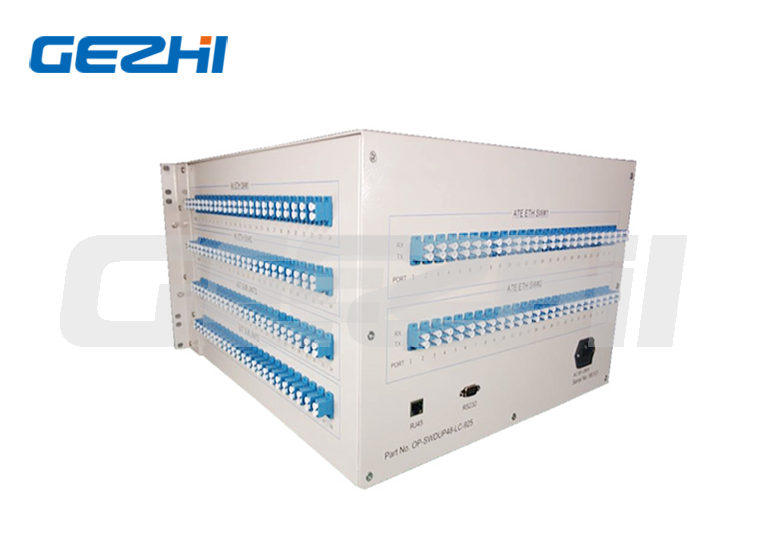

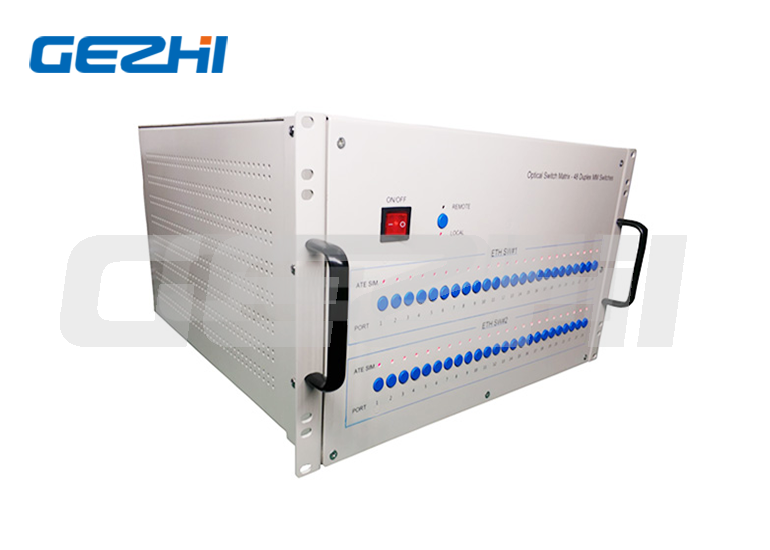

Remote Monitoring Fiber Optical Switches 48*2x4 Matrix for Optical Networking

Name: Remote Monitoring Fiber Optical Switches 482x4 Matrix for Optical Networking
Brand: Gezhi or OEM
Price: 1 USD

Buy cheap Remote Monitoring Fiber Optical Switches 48*2x4 Matrix for Optical Networking product

Brand Name : Gezhi or OEM

Model Number : 48-2X4-SMF

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1 pieces

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : Paper box

High Light : 48 2x4 Matrix Optical Switch, Remote Monitoring Matrix Optical Switch, Rackmount Matrix Optical Switch

Application : Remote Monitoring

Monitor Port : RJ45 & RS232 Or Customized

Connector : FC, SC, LC, ST, SMA Or Customized

Contact Now

48*2x4 Optical Switch Matrix description

48*2x4 Optical Switch Matrix Fiber Optical Switches

In the rapidly evolving realm of optical networking, the demand for flexible and reliable devices is constantly escalating. Taking center stage in this sector is the 48*2x4 Optical Switch Matrix presented by GEZHI Photonics, a leading factory known for its expertise in optical switch matrix equipment.

48*2x4 Optical Switch Matrix Features

LED display panel. Visual display, Convenient operation
SerialNet, High Reliability, High Stability
RS232 Control and RJ45 Ethernet Remote Management
Channel and time interval of automatic scanning can be set up
Transparent transmission signal. High stability and re
liability

Applications

Automatic Measurement
FITL
Cable Monitoring and Maintaining system
Optical Network Remote Monitoring
Optical Matrix Switch Technical Index

Parameter	Unit	48*2x4
Wavelength Range	nm	1260~1650 or customized
Testing Wavelength	nm	1310/1550 or customized
Insertion Loss (Max)	dB	≤1.5
Return Loss	dB	SM ≥ 50
Crosstalk	dB	≤-55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.20
Repeatability	dB	≤0.02
Switching Time	ms	≤10 (Adjacent Channel)
Optical Power	mW	≤500
Fiber Type	um	9/125
Connector	/	FC, SC, LC, ST, SMA or customized
Monitor Port	/	RJ45 & RS232 or customized
Working Power Supply (Plug Tyep)	V	AC:220V (50/60Hz) or DC:36V~72V
Operating Temperature	℃	-10~+60
Storage Temperature	℃	-40~+85
Rack mount Dimensions	mm	6U: 483x500x267mm

FAQ

Q1:Can I have a sample order? What is your MOQ of 48*2x4 Matrix Optical Switch Rackmount?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of 48*2x4 Matrix Optical Switch Rackmount?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of 48*2x4 Matrix Optical Switch Rackmount?
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
