RoHS Compliant CEx WDM1r Module NGS-PON GPON For Optical Telecommunication Networks

Brand Name : GEZHI or OEM

Model Number : NGS/GPON-SA

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Packaging Details : Paper box

Product Name : CEx WDM Module

PN : NGS/GPON-SA

Connector : SC/APC

Fiber Type : Corning Ultra Fiber (G657.A1)

Contact Now

RoHS Compliant CEx WDM1r Module,NGS-PON GPON for optical telecommunication networks



Product Description

The Coexistence Element (CEx) of xWDM/xPON multiplexer is a single WDM device to combine current G-PON FTTH services with emerging XGS-PON and Next Generation NG-PON2 technologies. Additional provisioning wavelengths with the Coexistence Element include RF, Point to Point (PtP), and OTDR monitoring.Its compliant with ITU-T G.984.5.



High quality components ensure very high operation stability of xWDM/xPON multiplexers in the whole spectral range and perfect thermal stability. GEZHI offers a flexible platform of Coexistence Element products to fit a specific PON deployment that is most cost-effective to your needs – Depending on your requirements each CEx can be fully complemented with all PON services or with only the services requested. Premium optical components and high-quality connectivity ensure superior performance, the lowest loss, and robust network reliability.

RoHS Compliant CEx WDM1r Module NGS-PON GPON For Optical Telecommunication Networks



FEATURES

Low Insertion Loss

High channel isolation

RoHS Compliant

Available with customized functionalities

APPLICATIONS

WDM systems

PON SYSTEM

FTTH access networks

optical telecommunication networks



Wavelength of the Coexistence Elemet (CEx) Multiplexer



Protocl/Service Wavelength
G-PON Band 1290~1330, 1480~1500nm
XGS-PON Band 1260~1280, 1575~1580nm
NG-PON2 Band 1524~1544, 1596~1625
RF Video Band 1540~1565nm
PtP WDM-PON Band 1610~1625nm
OTDR Monitor Band 1640 - 1660nm



Specification

CEx Multiplexer Protocl/Service Spectral Range Max Insertion Loss Isolation
CEx01 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
NGA 1260-1280 & 1572-1650nm 1.0dB ≥16dB
CEx02 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
CEx03 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
NG-PON2 1524-1544 & 1596-1625nm 1.4dB ≥16dB
CEx04 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
NG-PON2 1524-1544 & 1596-1625nm 1.4dB ≥25dB
CEx05 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
RF Video 1540-1565nm 1.4dB ≥30dB
CEx06 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
RF Video 1540-1565nm 1.7dB ≥30dB
OTDR Monitor 1640-1660nm 1.4dB ≥30dB
CEx07 G-PON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
NG-PON2 1524-1544 & 1596-1625nm 1.4dB ≥25dB
RF Video 1540-1565nm 2.0dB ≥30dB
PtP WDM-PON 1610-1625nm 1.7dB ≥30dB
CEx08 G-PON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
NG-PON2 1524-1544 & 1596-1625nm 1.4dB ≥25dB
OTDR Monitor 1640-1660nm 1.7dB ≥30dB
PtP WDM-PON 1610-1625nm 2.0dB ≥30dB
RF Video 1540-1565nm 2.3dB ≥30dB

Note: Customized Specification is available.
The above specifications do not include connector loss.



Other Specification



Parameter Unit Value
PDL dB ≤0.2
Directivity dB ≥50
Return Loss dB ≥50
Operating Temperature ℃ -10~+70
Storage Temperature ℃ -40~+85
Optical Power mW 300
Fiber Type / Corning Ultra Fiber (G657.A1)



Ordering Information



Model Configuration Package type Cable type Fiber length Connector

CEx01

CEx02

CEx03

CEx04

CEx05

CEx06

CEx07

CEx08

S=Specify

1=1unit combo

2=2unit combo

3=3unit combo

4=4unit combo

S=Specify

A0=ABS box 80x60x12mm

A1=ABS box 100x80x10mm

A2=ABS box 120x80x18mm

A3=ABS box 140x115x15mm

L1=LGX 129*29*130mm

L2=LGX insert in 2slot Rack

L4=LGX insert in 4slot Rack

R1=19" 1 U Rack

R2=2slot 19″1U Rack

R4=4slot 19″1U Rack

X=Customized



00=None

09=900um loose tube
20=2.0mm
30=3.0mm

00=None

05=0.5m

10=1.0m
15=1.5m
S=Specify

 00=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
S=Specify

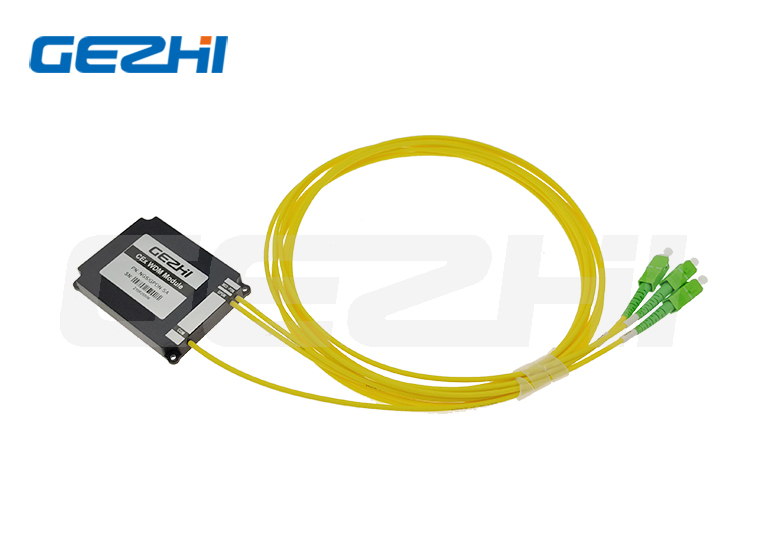

CEx Multiplexer Module ABS Box Package



RoHS Compliant CEx WDM1r Module NGS-PON GPON For Optical Telecommunication Networks

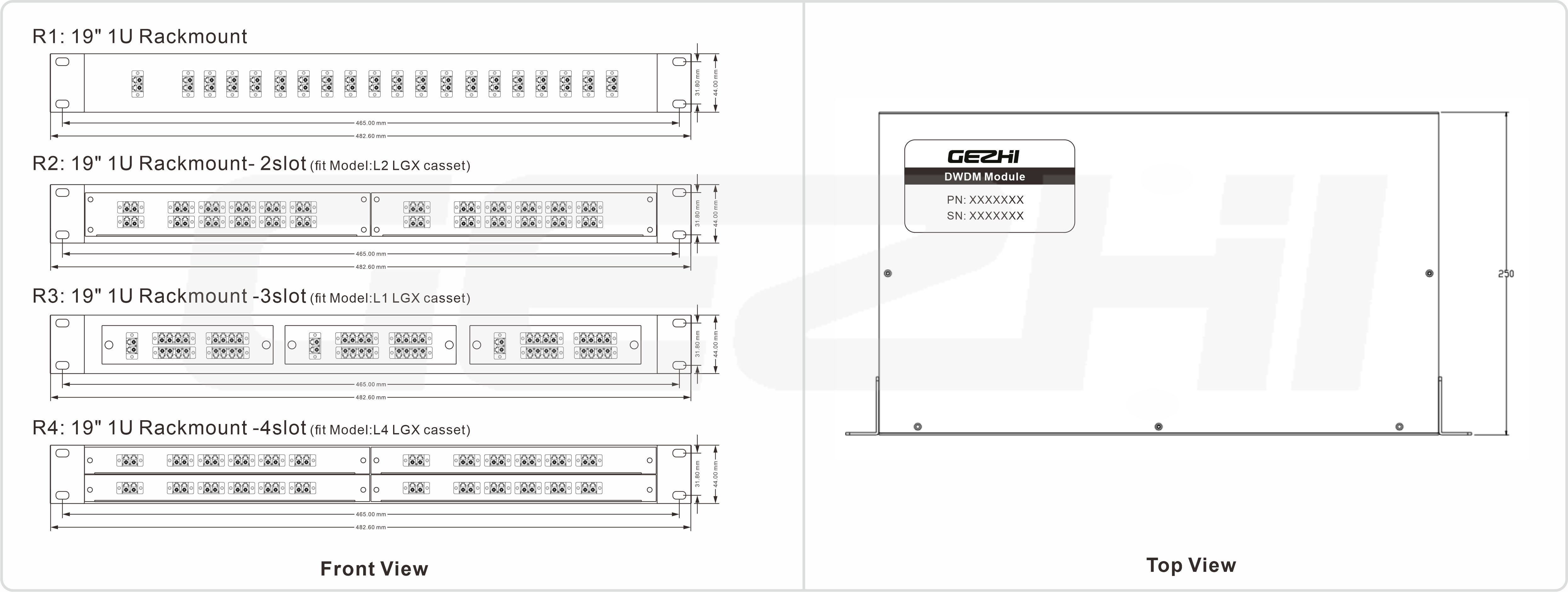

CEx Multiplexer Module Rackmount Package
