1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution

Brand Name : Gezhi or OEM

Model Number : 1*2 Steel Tube type PLC Splitter

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1 pieces

Price : USD >= 1 pieces $5.6

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : inner box,Carton

Package : Steel Tube

Application : FTTH FTTB FTTX Network

Fiber Connector : LC/UPC, LC/APC, SC/UPC etc.

Control Type : G652A1

Port : 1x2

Wavelength : 1260-1650nm

Warranty Time : 3 years

Contact Now

Product description

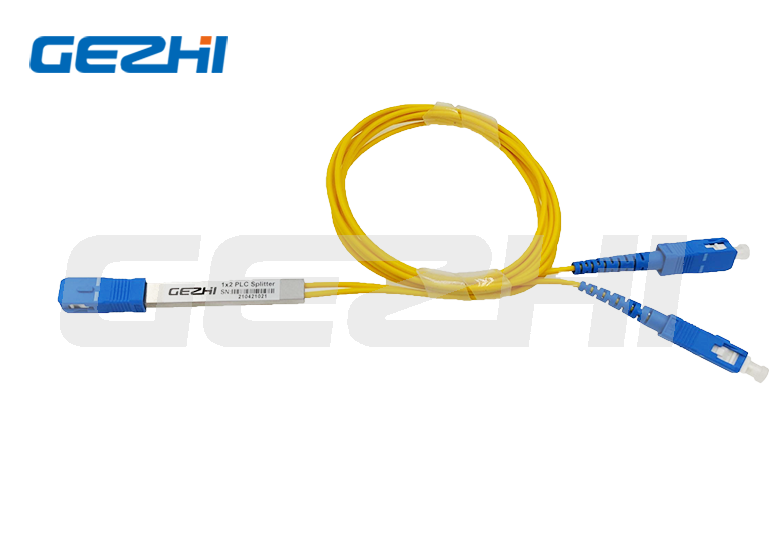

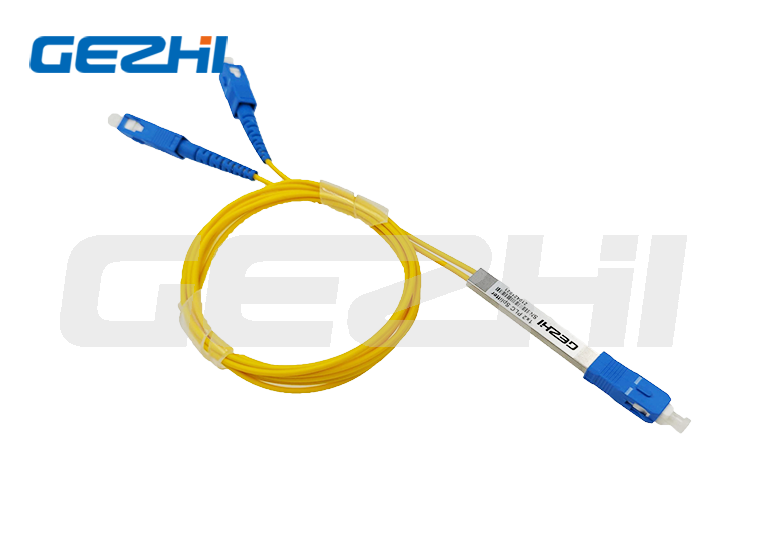

                                 1*2 Steel Tube type fiber optic PLC splitter for Optical Signal Distribution

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.



1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution

1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution

1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution

1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution

Feature

Low Insertion loss

Low PDL Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃ to 85℃

High Reliability and Stability

Application

Optical Signal Distribution
Data Communications
Lan and CATV System
FTTX Deployment
Passive Optical Networks (PON)
Measuring System and Laser System





PRODUCT SPECIFICATIONS
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260~1650
Fiber Type
G657 or customized
Insertion Loss (dB)
≤4.1
≤7.4
≤10.5
≤13.8
≤17.1
≤20.4
Loss Uniformity (dB)
≤0.8
≤0.8
≤0.8
≤1.0
≤1.5
≤2.0
Return Loss (dB)
≥50
≥50
≥50
≥50
≥50
≥50
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
≥55
≥55
≥55
≥55
≥55
≥55
Temperature Stability (-40~85 ℃)(dB)
0.5
0.5
0.5
0.5
0.5
0.5
Operating Temperature (℃)
-40~85
Storage Temperature (℃)
-40~85
Typies
1*2,1*4,1*8,1*16,1*32,1*64(with/without connectors)
2*2,2*4,2*8,2*16,2*32,2*64(with/without connectors)
Note:
1. The insertion loss is at least 0.2dB less without connector.
2. The insertion loss for 2×N PLC would increase less than 0.3dB.
3. Insertion loss varies with different connectors:UPC ≥50 dB, APC ≥55 dB



Test Enviroment
1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution
1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution
1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution
1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
Relay Reliable Testing
100% Testing Before Shipment



FAQ
Q1:Can I have a sample order? What is your MOQ for 1*2 fiber optic PLC Splitter?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time for 1*2 fiber optic PLC Splitter?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time for 1*2 fiber optic PLC Splitter?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
