1x2 Fiber Optical Circulators Isolators With FC And DIN Port For Optical Amplifier Fiber Optic Switch

  • 1
  • 2

Brand Name : GEZHI or OEM

Model Number : 1x2-FC

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1 pieces

Price : USD >= 1 pieces $15.9

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : inner box,Carton

Directivity : ≥50

PMD : ≤0.1mW

Power Handling : ≤300

Package dimension : 5.5xL50 or 5.5xL63

Wavelengths : 1310±30 or 1550±30 or 1585±30

Return Loss : ≥50dB

Warranty Time : 3 years

Use : 10GBASE-ZR/ZW

Contact Now

Product description

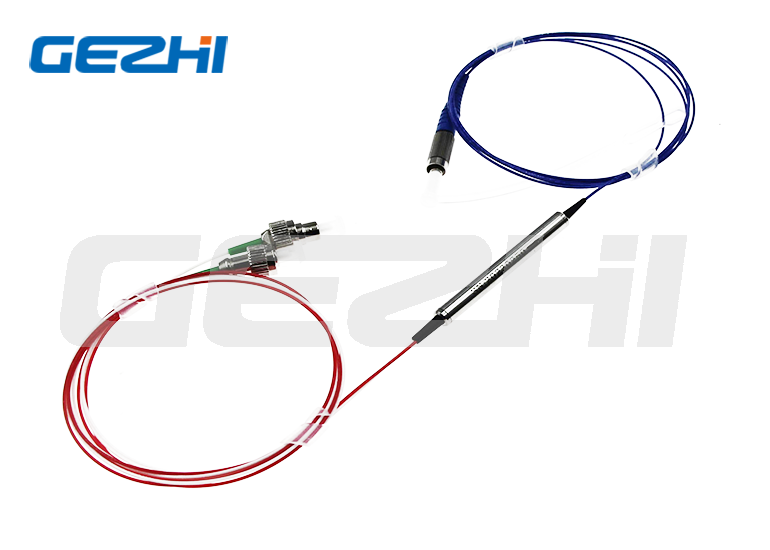

                                        1x2 Fiber Optical Circulators Isolators with FC and DIN port for Optical Amplifier

   GEZHI Photonics’ Three-port 1x2 Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.

1x2 Fiber Optical Circulators Isolators With FC And DIN Port For Optical Amplifier Fiber Optic Switch

1x2 Fiber Optical Circulators Isolators With FC And DIN Port For Optical Amplifier Fiber Optic Switch



Technical Specification
Parameter
P Grade
Configuration
Port 1 to Port 2 to Port 3
Operation Wavelength (nm)
1310±30 or 1550±30 or 1585±30
Isolation (dB)
Typical
0.6
Maximum
0.8
Typical Isolation (dB)
≥50
Minimum Isolation (dB)
≥40
Cross Talk (dB)
≥50
Polarization Dependent Loss (dB)
<0.15
Polarization Mode Dispersion
<0.1
Return Loss(dB)
≥50
Power Handling (mW)
500
Opterating Temperature (℃)
-10~+75
Package dimension (mm)
Φ5.5xL50 or Φ5.5xL63



Application Diagram
1x2 Fiber Optical Circulators Isolators With FC And DIN Port For Optical Amplifier Fiber Optic Switch
1x2 Fiber Optical Circulators Isolators With FC And DIN Port For Optical Amplifier Fiber Optic Switch
1x2 Fiber Optical Circulators Isolators With FC And DIN Port For Optical Amplifier Fiber Optic Switch



Certification
FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
